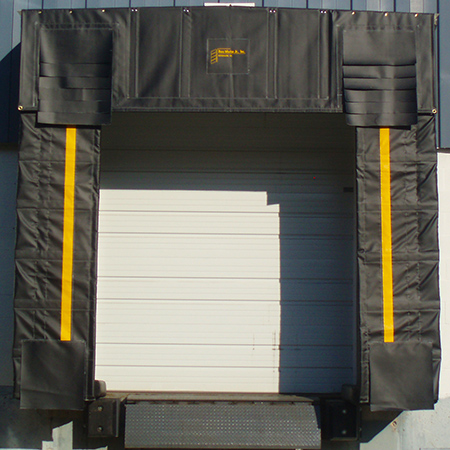

Soft Sided Truck Shelters

Rotary Products’ soft sided dock shelter uses high density foam covered with vinyl in place of rigid wood side frames. This eliminates the need for the steel protective bumpers. In the event of a trailer mis-spot, the flexible sides will return with no damage. The side curtains are attached with a touch and hold system that allows removal and replacement without tools. These units are the best in the industry because we employ the same high quality materials and workmanship utilized on our original rigid shelter.

SH402-SS Dock Shelter Submittal Drawing

Installation Instructions

Description

GENERAL SPECIFICATIONS
SH402SS – SOFT SIDED LOADING DOCK SHELTER

STANDARD DIMENSION: 11’6” WIDE X 11’ HIGH OUTSIDE TO OUTSIDE

STANDARD PROJECTIONS
SH402-18-SS 18” PROJECTION
SH402-24-SS 24” PROJECTION
SH402-30-SS 30” PROJECTION
SH402-36-SS 36” PROJECTION
SH402-42-SS 42” PROJECTION

VERTICAL SIDES:
VERTICAL SIDES SHALL BE CONSTRUCTED OF A DENSE POLYURETHANE FOAM RUBBER MINIMUM 1.5 LBS DENSITY AND 45
LBS COMPRESSION. SIDES WILL HAVE 6” FACE AND 2 X 8 BACKER BOARD. THEY WILL BE 10’6” HIGH. COVER WILL BE 22 OZ
PER SQUARE YARD VINYL COATED NYLON. VERTICAL SIDES SHALL HAVE 4” WIDE TOUCH AND HOLD VELCRO RUNNING THE LENGTH OF EACH SIDE FOR COVER ATTACHMENT.


HEAD FRAME:

HEAD FRAME SHALL BE CONSTRUCTED OF 2 X 4 AND 2 X 6 PRESERVATIVE TREATED LUMBER. HEADER FRAME IS SLOPED 2” FOR WATER RUN OFF. HEAD FRAME TO HAVE ONE 1 ½” X 1 ½” X 3” ZINC PLATED ANGLE AT EACH CORNER. TRANSLUCENT LIGHT PANEL TO COVER ENTIRE HEAD FRAME PLUS AN ADDITIONAL 1 ½” ON EACH SIDE. HEAD FRAME IS SUPPORTED ON EACH SIDE WITH HEAVY DUTY STEEL BRACES THAT ANGLE BACK TO BUILDING.

VERTICAL COVERS:
VERTICAL COVERS SHALL BE CONSTRUCTED PRIMARILY OF 40 OZ PER SQUARE YARD VINYL COATED NYLON WITH HIGH TEAR DUROPRENE VINYL AT THE HIGH WEAR ARIAS. INCLUDED IN HIGH WEAR AREAS ARE 22” X 20” REINFORCING FLAPS AT THE BOTTOM OF EACH VERTICAL COVER, A 6” STRIP DOWN THE OUTSIDE EDGE OF EACH VERTICAL AND 3” STRIPS COVERING SPRING STEEL STAYS.
EACH VERTICAL COVER WILL HAVE SEVEN BLUE TEMPERED SPRING STEEL STAYS, .042” X 2” X 24” VERTICAL COVER WILL HAVE TWO 4” WIDE VELCRO STRIPS RUNNING THE LENGTH THAT ATTACH TO EACH SIDE OF THE VERTICAL PAD. EACH VERTICAL COVER WILL ALSO HAVE A FULL LENGTH YELLOW GUIDE STRIPE.

HEADER COVER:
HEADER COVERS SHALL BE CONSTRUCTED PRIMARILY OF 40 OZ PER SQUARE YARD VINYL COATED NYLON WITH HIGH TEAR DUROPRENE VINYL AT THE HIGH WEAR AREAS. INCLUDED IN HIGH WEAR AREAS ARE FOUR – 12” X 28” HIGH TEAR DUROPRENE VINYL WEAR SHIELDS ON EACH SIDE. THE HIGH TEAR DUROPRENE IS ALSO USED TO COVER THE SPRING STEEL STAYS. HEADER COVER HAS FOUR BLUE TEMPERED SPRING STEEL STAYS .042” X 2” X 30”.

BOTTOM CORNER PILLOWS:
THERE SHALL BE TWO BOTTOM CORNER PILLOWS PER UNIT. BOTTOM CORNER PILLOWS WILL BE CONSTRUCTED OF POLYURETHANE FOAM COVERED IN 22 OZ PER YARD VINYL COATED NYLON. PILLOWS ARE ATTACHED TO SIDE PADS VIA A 3” WIDE TOUCH AND HOLD FASTENING SYSTEM.
