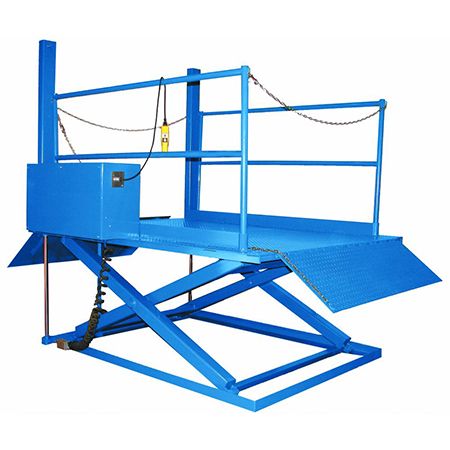

6000 Series Top of Ground Dock Lifts

These are Instant Docks that simply require positioning and plugging into a power receptacle and they are ready to go to work. They are designed for use with light equipment such as hand carts, 4 wheel carts and pallet jacks, through light to medium capacity fork trucks.

SPECIAL FEATURES:

  • All models are equipped with a hinged bridge equipped with a pull back chain.
  • All models have an approach ramp.
  • All of the electrical controllers are Underwriters Laboratories approved assemblies.
  • Each unit is washed with phosphoric acid, fully primed and then finished with baked enamel.
  • All cylinders are machine grade with clear plastic return lines.
  • All pressure hoses are double wire braid with JIC fittings.
  • Reservoirs are mild steel.
  • These units conform to all applicable ANSI codes

NOTE:
5,000 lb and 8,000 lb capacity lifts have 2 cylinders.
10,000, 12,000 and 15,000 lb capacity lifts have 4 cylinders.

OPTIONS:
1. 12.5 fpm speed with 10 hp power units on 4 cylinders lifts.
2. 6 fpm speed with 5 hp power units on 4 cylinder lifts.

FEATURE DETAILS:
